We are Government Licensed Contractors No. MC-24229 and authorized to render the following services.
Transformer Oil Filtration:
Transformer oil filtration is carried out with oil filter machine of adequate capacity.

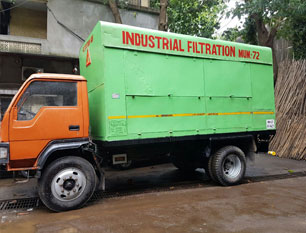

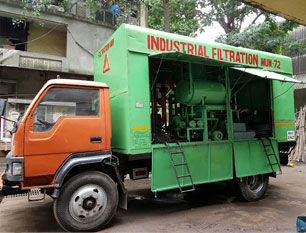

Our mobile oil filtration plant is designed to remove dissolved moisture, dirt, air and other gases from the transformer oil.
This two stage plant operates on the principle of Low Temperature and High Vacuum.
Unfiltered oil is taken in to the system through the inlet valve. Then the oil is pumped to the system through positive displacement pump. Preliminary filters protect the pump by entering solid and magnetic particles upto 1 mm size. The oil is heated up to 60°C. After heating the oil passes through the cartridge filters where the particles up to 5 microns are filtered. Then the oil is passed through a specially designed vacuum chamber, where the moisture, air and other gases are extracted from the oil. The vacuum chamber is designed in such a way that the oil is spread out and is allowed to fall by gravity over the media inside, forming a thin film of oil providing a large surface area exposed to vacuum. With this exposure, the dissolved moisture and gases are evacuated to improve the insulating properties of transformer oil.
Erection, testing and commissioning of new transformers
Industrial Filtration has extensive experience in erection and commissioning of all types of transformers. We have a separate segment for erection and commissioning of large transformers. Combination of highly skilled site technicians and modern handling equipments enhances the speed and efficiency of this vital operation which includes erection of fittings and accessories, evacuation of main transformer tank, oil filling under vacuum and pre-commissioning tests of transformer.
On site repair & Overhauling of Power & Special Transformers
This includes replacement of transformer gasket sealing and removal of moisture. Such repairs/overhauling is carried out at site where adequate lifting and handling facility is available.
Filtration of Lubricating Oils
We filter industrial oils to be reused again viz: Quenching Oils, Hydraulic Oils, Turbine Oils, Thermic Fluids, Gear Oils, Straight Cutting Oils, etc.
Transformer Oil Testing
Transformer oil is tested as per recommendations of relevant IS.
We test the transformer oil for various crucial parameters such as:
● Specific Resistance (Resistivity)
● Dielectric Dissipation Factor (Tan Delta)
● Neutralisation Value (Acidity)
● Water Content (PPM)
● Inter Facial Tension
● Dissolved Gas Analysis
● Dielectric Strength
Tanks for Transformer Oil storage
We can arrange for empty storage tanks required to store transformer oil
Spare Vacuum Pumps
We always carry and also can hire out spare vacuum pumps for the evacuation of transformers, for new transformers where oil filling is yet to be done and for old transformers where oil needs to be drained for maintenance.
DIESEL GENERATOR
We can provide DG set upto 250 KVA
|
